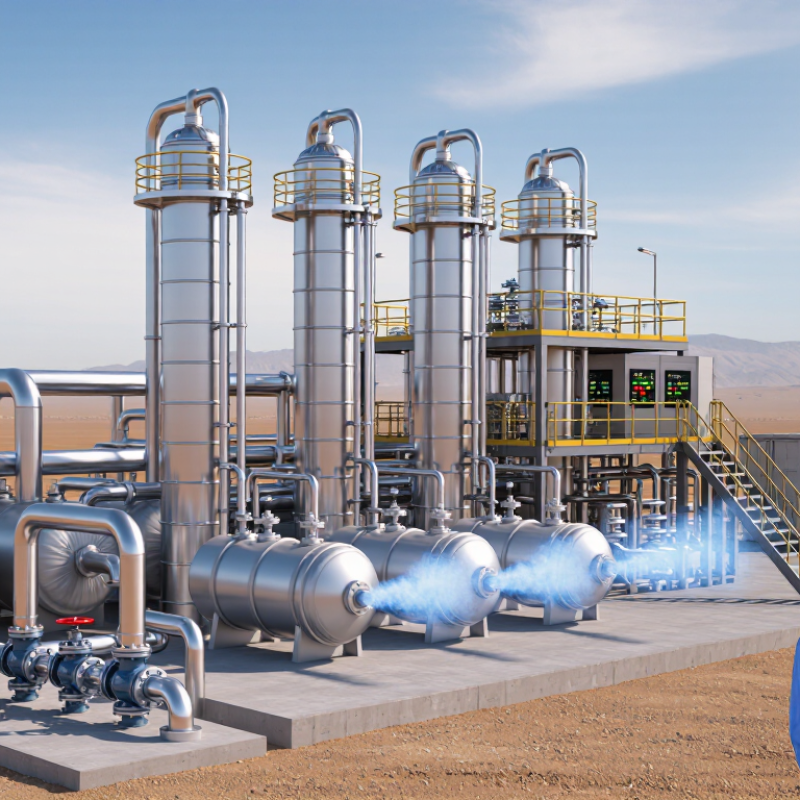

What Is Cryogenic Process Helium Extraction?
Cryogenic Process Helium Extraction is a specialized method for recovering helium from natural gas streams. It uses extremely low temperatures to separate helium from methane, nitrogen, and other gases. The process resembles a frozen, carefully controlled sieve. Helium remains gaseous while heavier components condense.
The U.S. Geological Survey’s Mineral Commodity Summaries 2025 estimated global helium production at approximately 190 million cubic meters in 2024. The United States contributed about 74 million cubic meters. Qatar, Algeria, and Russia also remained important suppliers. These figures show why recovery efficiency matters. Even small processing losses can affect medical imaging, semiconductor manufacturing, aerospace testing, and laboratory operations.
Phil Kornbluth, a recognized helium-market analyst, has described helium as “a very unique commodity.” That short statement captures the market’s unusual character. Helium cannot be manufactured economically, and atmospheric recovery remains impractical. Cryogenic plants therefore depend on suitable gas composition, stable refrigeration, and precise purification controls. The U.S. Geological Survey and the U.S. Bureau of Land Management both emphasize helium’s strategic value and supply sensitivity.
Still, the industry is not perfectly predictable. Reported production can differ between sources, depending on whether volumes include raw, refined, or recovered helium. That distinction deserves attention. A reliable Cryogenic Process Helium Extraction project needs more than cold temperatures. It requires validated feed-gas analysis, experienced operators, dependable compressors, and transparent measurement practices. Mistakes are expensive. Sometimes, the smallest impurity becomes the largest operational problem.
Definition and Purpose of Cryogenic Process Helium Extraction
What Is Cryogenic Process Helium Extraction?
Cryogenic process helium extraction separates helium from natural gas using extremely low temperatures. Its purpose is clear: recover a scarce gas before it is lost during processing. NIST lists helium’s normal boiling point at 4.22 K, far below nitrogen and methane. Therefore, most feed gases condense first, while helium remains in the vapor stream. The process usually includes dehydration, carbon dioxide removal, cooling, nitrogen separation, and final helium purification.
The USGS Mineral Commodity Summaries 2024 estimated worldwide helium production at about 190 million cubic meters in 2023. This figure shows why recovery efficiency matters. Even small helium concentrations can support commercial recovery when gas volumes are large. Cryogenic equipment also produces colder, cleaner streams for downstream purification. However, the method requires high capital costs, careful insulation, and stable feed composition. It is not automatically the best choice. That assumption deserves review.
Tips: Measure helium concentration before selecting equipment. Monitor moisture and carbon dioxide continuously. A minor contaminant can freeze inside a heat exchanger and restrict flow. Track recovery, energy use, and product purity together. Optimizing only one metric can create hidden losses. USGS data also changes with production reporting, so operators should verify current regional figures before investment decisions.
Helium Sources and Feed Gas Preparation
Helium usually begins as a trace component in underground natural gas. Some reservoirs contain useful concentrations, while others do not justify recovery. Geological surveys and representative sampling guide that decision. In operating facilities, source gas may also contain methane, nitrogen, carbon dioxide, water, and heavier hydrocarbons. The exact mixture changes by field and season. That variability matters. A laboratory result from one sample cannot represent every tanker or well.
Feed gas preparation protects the cold section from freezing and contamination. Operators measure composition, pressure, flow, and impurities before treatment. Filters remove solids and liquid droplets. Cooling and separation stages then reduce water and carbon dioxide to controlled levels. Heavy hydrocarbons need careful management. They can condense, block passages, or disturb heat transfer. Acid gases may require dedicated treatment, depending on the source and plant design. The target is not simply a richer helium stream. It is a stable feed with predictable behavior.
In practice, pretreatment is not a routine checkbox. Moisture alarms, filter pressure, and gas analyzer trends can reveal problems early. Still, process models can be too confident. Trace contaminants may behave differently at low temperatures than expected. Operators should compare online readings with laboratory analyses and investigate unusual pressure changes. The warning signs are often physical. Frost may appear where it should not. Valves may become unstable. Pressure drop can rise slowly.
What Is Cryogenic Process Helium Extraction?
Cryogenic helium extraction uses the different boiling points of feed-gas components to separate and concentrate helium. The chart shows standard boiling points at approximately 1 atmosphere.
Before cryogenic cooling, raw natural-gas feed is typically filtered, compressed, dehydrated, and treated to remove carbon dioxide and heavy hydrocarbons. These contaminants can freeze or form solids at low temperatures. Nitrogen and methane are separated during the cryogenic stages, while helium remains in the light-gas stream because its boiling point is far lower than that of the other major components.
Core Steps in the Cryogenic Separation Process
What Is Cryogenic Process Helium Extraction?
Cryogenic helium extraction separates helium from natural gas by exploiting differences in boiling points. Helium boils at about 4.2 K, while nitrogen boils at 77.4 K and methane at 111.7 K. The U.S. Geological Survey reported approximately 190 million cubic meters of global helium production in 2023. That volume shows why stable recovery systems matter.
The process begins with feed-gas testing and pretreatment. Water, carbon dioxide, mercury, and heavy hydrocarbons must be removed before deep cooling. Even small contaminants can freeze inside heat exchangers. The cleaned gas is compressed, then cooled through multi-stage heat exchangers. Expansion turbines reduce temperature and recover useful refrigeration. It is colder than most industrial rooms can imagine.
A cryogenic distillation section then separates methane-rich liquid from helium-rich gas. Further purification removes residual nitrogen, hydrogen, and other light gases. Pressure-swing adsorption or molecular sieves may polish the product, depending on the feed composition. The final stream commonly reaches commercial helium specifications above 99.99%, although actual purity depends on the equipment and assay method.
The U.S. Department of Energy identifies helium as important for magnetic resonance imaging, semiconductor manufacturing, and scientific research. Yet a simple flow diagram can hide difficult operating choices. Higher recovery may increase energy demand or reduce product purity. Operators must balance temperature, pressure, residence time, and safety margins continuously. That balance is rarely perfect. The most reliable design is based on measured feed data, verified instrumentation, and repeated performance checks.
Product Purification, Storage, and Industrial Applications
Cryogenic Process Helium Extraction: Product Purification, Storage, and Industrial Applications
Cryogenic helium extraction separates helium from natural gas at extremely low temperatures. The process begins with dehydration and contaminant removal. Nitrogen, methane, hydrogen, and heavier hydrocarbons must be controlled carefully. Helium remains gaseous while most feed components condense. This difference supports efficient recovery from helium-bearing gas streams.
Purification usually combines cryogenic separation with pressure-swing adsorption or membrane systems. Commercial product often reaches 99.995% helium purity, depending on customer requirements. The U.S. Geological Survey’s Mineral Commodity Summaries 2024 estimated global helium production at about 190 million cubic meters in 2023. That figure shows the market’s scale, but also its sensitivity to supply interruptions. Small impurities can affect semiconductor equipment, leak detectors, and laboratory instruments. Real plants rarely behave perfectly. Feed composition changes, and recovery targets can conflict with energy consumption.
After purification, helium is stored as compressed gas or refrigerated liquid. Liquid helium requires insulated vessels near 4 kelvin, with controlled venting and pressure monitoring. Compressed storage uses high-pressure cylinders or tube trailers. Industrial demand remains concentrated in magnetic resonance imaging, semiconductor manufacturing, fiber production, welding, aerospace testing, and leak detection. USGS data identifies these sectors as major helium applications. Storage losses still deserve attention. Even careful operators cannot eliminate every boil-off loss, especially during transport and extended holding periods.
